Visions PV .014P RX
Digital IVUS catheter
Visions PV .014P RX
Digital IVUS catheter

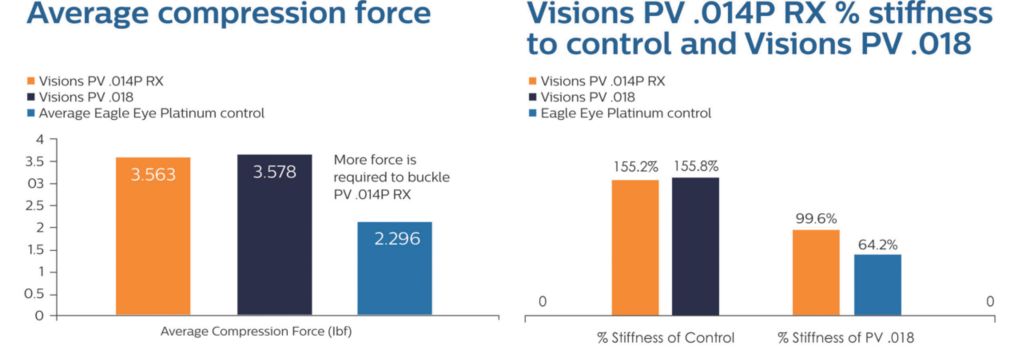

The Visions PV .014P RX digital IVUS catheter has a 55% stiffer shaft than Eagle Eye Platinum and PV .014P digital IVUS catheters to facilitate greater pushability while preserving the equivalent level of trackability.¹ IVUS provides detailed and accurate assessment of lumen size, vessel size, plaque morphology and key anatomical landmarks.
Clinical image gallery
Features
Real-time lesion assessment in the cath lab
VH IVUS imaging provides a colorized tissue map of plaque composition with automated lumen and vessel measurements. VH IVUS technology uses advanced, proprietary spectral analysis techniques to classify plaque into 4 tissue types with 93-97% accuracy. *, ²
Helps confirm treatment results
IVUS imaging helps to confirm treatment results, including the completeness of treatment, the apposition and expansion of stent placement, and whether or not the patient requires a thrombolytic drip. ChromaFlo imaging, for example, can be used to show evidence of stent apposition by illustrating the absence of flow.
Helps with intervention decisions
Not only does IVUS provide real-time diagnostic imaging for peripheral artery disease, it may also guide clinicians to the correct angioplasty technique for the patient’s individual needs, assess intervention effectiveness, and assist in endovascular device delivery. The imaging modality also helps clinicians decide the size of the device needed for the best outcome.
Specifications
- Technical Specifications
- Minimum guide catheter
- 5 F (I.D. ≥ .056”)
- Maximum guide wire
- 0.014”
- Maximum imaging diameter
- 20 mm
- Working length
- 150 cm
- Frequency
- 20 MHz
Related products
- As an adjunct to conventional angiographic interventions, the Visions PV .035 digital IVUS catheter evaluates vascular morphology in blood vessels and provides cross-sectional imaging of these vessels. With a 90 cm length and 60 mm max imaging diameter for 0.035” guide wire interventional procedures, the device aids in peripheral artery disease diagnosis and venous disease and guides clinicians toward the correct therapy for the patient’s unique needs.
- As an adjunct to conventional angiographic interventions, the Visions PV .018 digital IVUS catheter evaluates vascular morphology in blood vessels and provides cross-sectional imaging of these vessels. With a 135 cm working length and 24 mm max imaging diameter for 0.018” guide wire interventional procedures, the device aids in peripheral artery disease diagnosis and guides clinicians toward the correct therapy for the patient’s unique needs.
Disclaimer
1. Data on file
2. Nair A, Margolis M, Kuban B, Vince D. Automated Coronary Plaque Characterisation with Intravascular Ultrasound Backscatter: Ex Vivo Validation. EuroIntervention. 2007; 3: 113-120
* Safety and effectiveness of VH IVUS for use in the characterization of vascular lesions and tissue types has not been established
Product availability is subject to country regulatory clearance. Please contact your local sales representative to check the availability in your country.
Always read the label and follow the directions for use.
Philips medical devices should only be used by physicians and teams trained in interventional techniques, including training in the use of this device.
Philips reserves the right to change product specifications without prior notification.
©2025 Koniklijke Philips N.V. All rights reserved. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
